Principles of operation

Ejector-Venturi Scrubbers utilize the energy of the scrubbing liquid to effectively entrain and remove noxious gases, particulates odors, fumes, and dusts from the gas. The particulates are removed through impaction of the solids by the high velocity spray liquid. Gaseous pollutants and odors are removed through absorption and/or chemical reaction between the gases and scrubbing liquid. The ejector action, in addition to providing effective scrubbing, also produces an air moving and/or static pressure boosting capability for the system.

How the Ejector-Venturi Scrubber Works

Contaminated gas is drawn into the Ejector-Venturi Scrubber by means of the ejector action of a high velocity liquid spray directed into a venturi throat. This high velocity spray is generated by the motive liquid pressure. The spray impinges on the venturi throat to induce the draft-producing action. The venturi throat is a high turbulence zone where maximum gas-liquid contact and mixing occur. It is this intimate contact which produces effective scrubbing. The scrubbed gases then leave the throat area with the contaminants impacted or absorbed into the scrubbing liquid. The diverging section is designed to regain as much as possible of the system energy and to reagglomerate the scrubbing liquid droplets for ease of entrained separation. The cleaned gases with entrained contaminated droplets discharge from the scrubber to a gas-liquid separator.

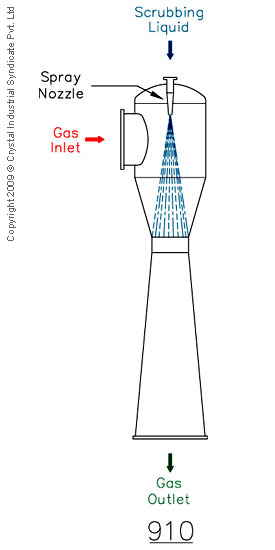

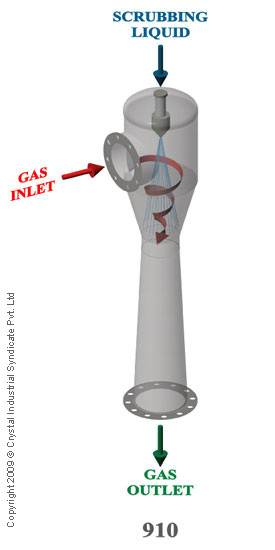

TYPE 910

The Type 910 Standard Ejector-Venturi Scrubber has a radial side gas inlet, bottom gas discharge, and top motive liquid inlet.

TYPE 911

The Type 911 inline Ejector-Venturi Scrubber has a top gas inlet, bottom gas discharge, and side motive liquid inlet. The Type 911 scrubber is used where an inline configuration simplifies the process equipment layout.

TYPE 912

The Type 912 Wet Approach Ejector-Venturi Scrubber has a universal gas inlet, bottom gas discharge, a top motive liquid inlet, and a side wall flush liquid inlet. The wet approach feature provides a fully flushed wet/dry line interface where hygroscopic materials are prevented from building up and plugging the unit.

In technical collaboration with Severn Trent Services

Ejector Venturi Scrubber Range

Flanged

Flanged

ANSI flange fittings are manufactured in accordance with ANSI B16.5 – Specification for Flanges and Flanged Fittings.

Buttweld

Buttweld

Buttweld access fittings are designed to be buttwelded directly to a 2" pipe end

Flareweld

Flareweld

Flareweld bodies are the most widely used. These bodies incorporate a reinforced welding neck and also have a radius machined into the base to accommodate the curvature of the pipe or vessel to which the body is welded.

Plug

Plug

The plug is a key component to the Crystal high pressure access fitting assembly, as the plug body provides the seal in the access fitting, thereby maintaining line pressure. The plug also serves an important function of holding the monitoring equipment which is exposed to the system.

Frequently Asked Questions About Ejector Venturi Scrubber

An Access Fitting is an access system to introduce the access of corrosion coupons, probes or Injection quills with out shutting down the normal operations. These are made of four Components

  1. Access fitting
  2. Solid Plug
  3. Service Valve
  4. Retrieving Tools
What are the Materials of Constructions available for access fittings?

They could be Inconel 625, Stainless Steel, Copper, Hestalloy C, Nitronic Stainless Steel and other exotic metals depending on the applications.

What is Maximum Pressure Range for Operation of the access fittings?

Crystal Industrial Access Fittings operate up to 450 to 500 bar pressure.
