What Are Retrievable Tools

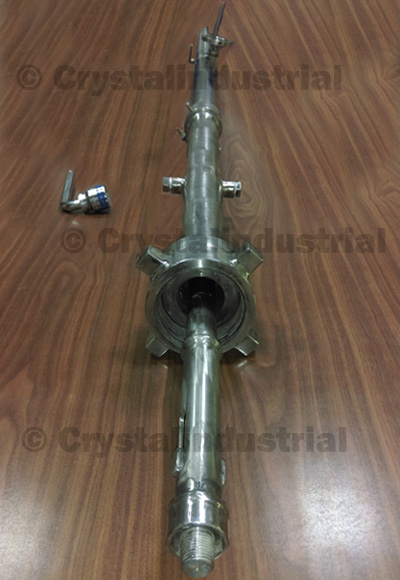

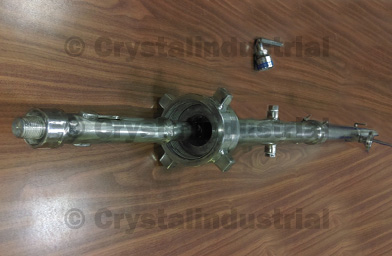

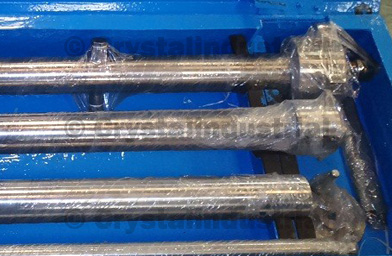

Crystal's retrieval tool and service valve can be used to insert or retrieve corrosion monitoring devices and injection quill from process systems operating under full pressure (up to 600 bar or 8700 psi). It can be used to retrieve a variety of sensors from high pressure access system or any conventional 2-inch access system. The tool is pressure tested at the factory to 6000 to 9000 psi for a working pressure of 3600 psi to 8500 (253 kg/cm2). The standard tool and service valve are suitable for operation between 0°F and 450°F (-18°C and 232° C). For operation at temperatures between -50°F and 250°F (-46°C and 121 °C), a low temperature version of both the tool and the service valve is available. The difference between the low and standard temperature versions is in the use of seal materials appropriate for each temperature range. The tool size or length of insertion is determined by the combined maximum pipeline size and the maximum height of any access fitting assembly with which the tool will be used. The length is defined as the distance that the plug/sensor assembly must travel to permit the service valve to close.

Crystal's retrieval tool is designed to operate strictly under mechanical principles, and the number of turns to completely seat or retract a component is a known constant. This allows the operator to have complete control over installation or removal, and is a distinct advantage over other models of retriever / access systems.

Retrievable Tools Range

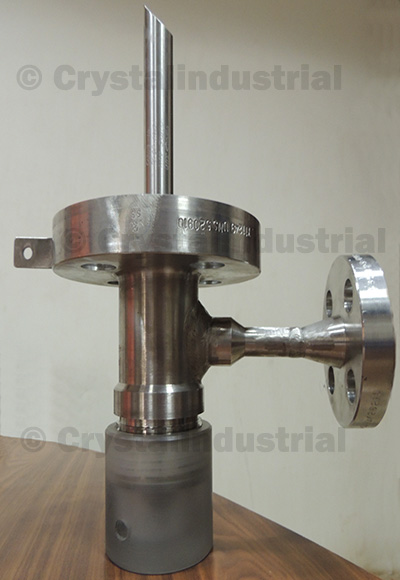

Flanged

Flanged

ANSI flange fittings are manufactured in accordance with ANSI B16.5 – Specification for Flanges and Flanged Fittings.

Access Fittings

Access Fittings

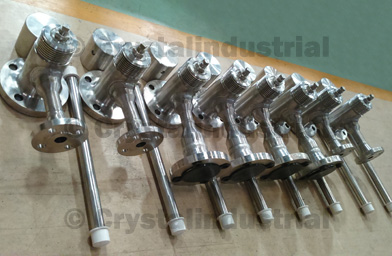

Are used to insert injection Quill, corrosion Coupons & Probes into high pressure (up to 600 bar) oil & gas pipeline without shutting down the flow in the main line

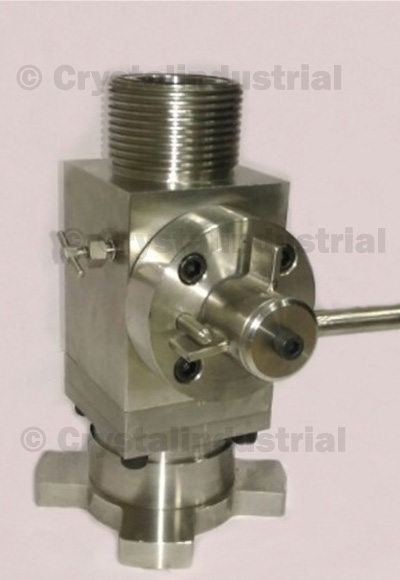

Service Valve

Service Valve

Are used in conjunction with Retrievable tools to insert injection Quill, corrosion Coupons & Probes into high pressure oil & gas pipeline without shutting down the flow in the main line

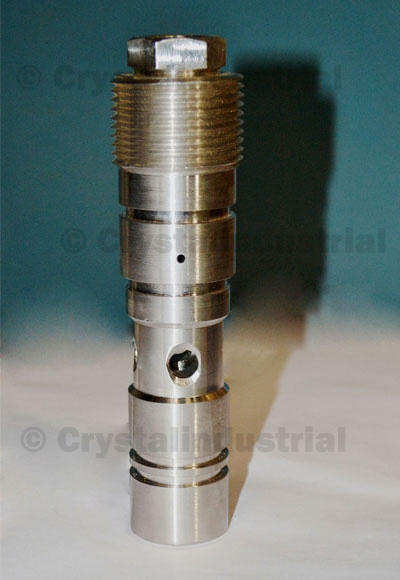

Plug

Plug

The plug is a key component to the Crystal high pressure access fitting assembly, as the plug body provides the seal in the access fitting, thereby maintaining line pressure. The plug also serves an important function of holding the monitoring equipment which is exposed to the system.

Frequently Asked Questions About Retrievable Tools

An Access Fitting is an access system to introduce the access of corrosion coupons, probes or Injection quills with out shutting down the normal operations. These are made of four Components

  1. Access fitting
  2. Solid Plug
  3. Service Valve
  4. Retrieving Tools

They could be Inconel 625, Stainless Steel, Copper, Hestalloy C, Nitronic Stainless Steel and other exotic metals depending on the applications.

Crystal Industrial Access Fittings operate up to 450 to 500 bar pressure.

Technical drawings (Move cursor to enlarge)

Flanged Type Access Fittings

Flanged Type Access Fitting

Buttweld Access Fitting

Buttweld Access Fitting

Flare Weld Access Fitting

Flare Weld Access Fitting

schematic diagram solid plug

Solid Plug
